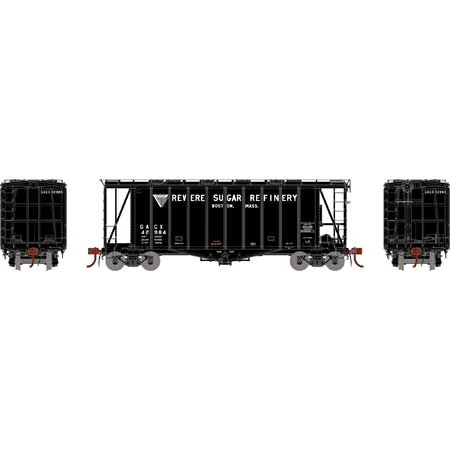

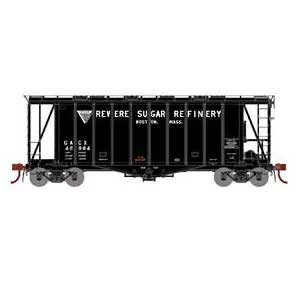

Athearn Genesis G87643 HO Scale GATC 2600 Airslide Hopper Revere GACX 42984

For the first half of the 20th century, bulk goods were usually bagged and carried in boxcars. After the late 1940s, covered hoppers greatly simplified the process by allowing the bulk material to be poured in through the roof hatches and dumped out the hopper bays. However, flour, starch, sugar and plastics do not “flow” easily from a standard hopper bay.

To solve this problem, the Fuller Company of Catasauqua, PA, patented the Airslide concept. In an Airslide covered hopper, the bays are formed into two narrow, steep-sided troughs with a layer of air-permeable material at the bottom. Air is pumped through the material causing the lading to fluidize and flow easily through the hopper outlets.

Starting in 1953, General American Transportation began building Airslide covered hoppers. One of the two original configurations was a 2,600-cubic foot, single-bay car with a 70-ton capacity. In addition to railroad-owned cars, there were several Airslide covered hoppers leased by GATC to sugar and bakery companies. Later, larger cars were introduced as the railroads continued to improve their infrastructure. To extend the useful lives of the smaller 2600 cuft cars, some of them were permanently connected in 2-unit drawbar sets. The drawbar sets operated as a single car, and therefore had a whopping total capacity of 5200 cuft- although their substantial length was a notable drawback.

FEATURES:

• Three different body styles
• Detailed underbody including outlet piping
• Rectangular or oval shaker brackets
• Gravity or gravity-pneumatic outlets
• See through metal roof walk
• Factory installed wire grab irons and brake piping
• Separately applied round roof hatches and brake wheel
• Roller bearing or Bettendorf trucks
• Machined metal wheels with RP25 contours
• Weighted for optimum performance
• Body-mounted McHenry® operating scale knuckle couplers
• Accurately painted and printed
• Highly detailed, injection molded body
• Minimum radius: 18”
